Shake

The rustic charm of traditional shake

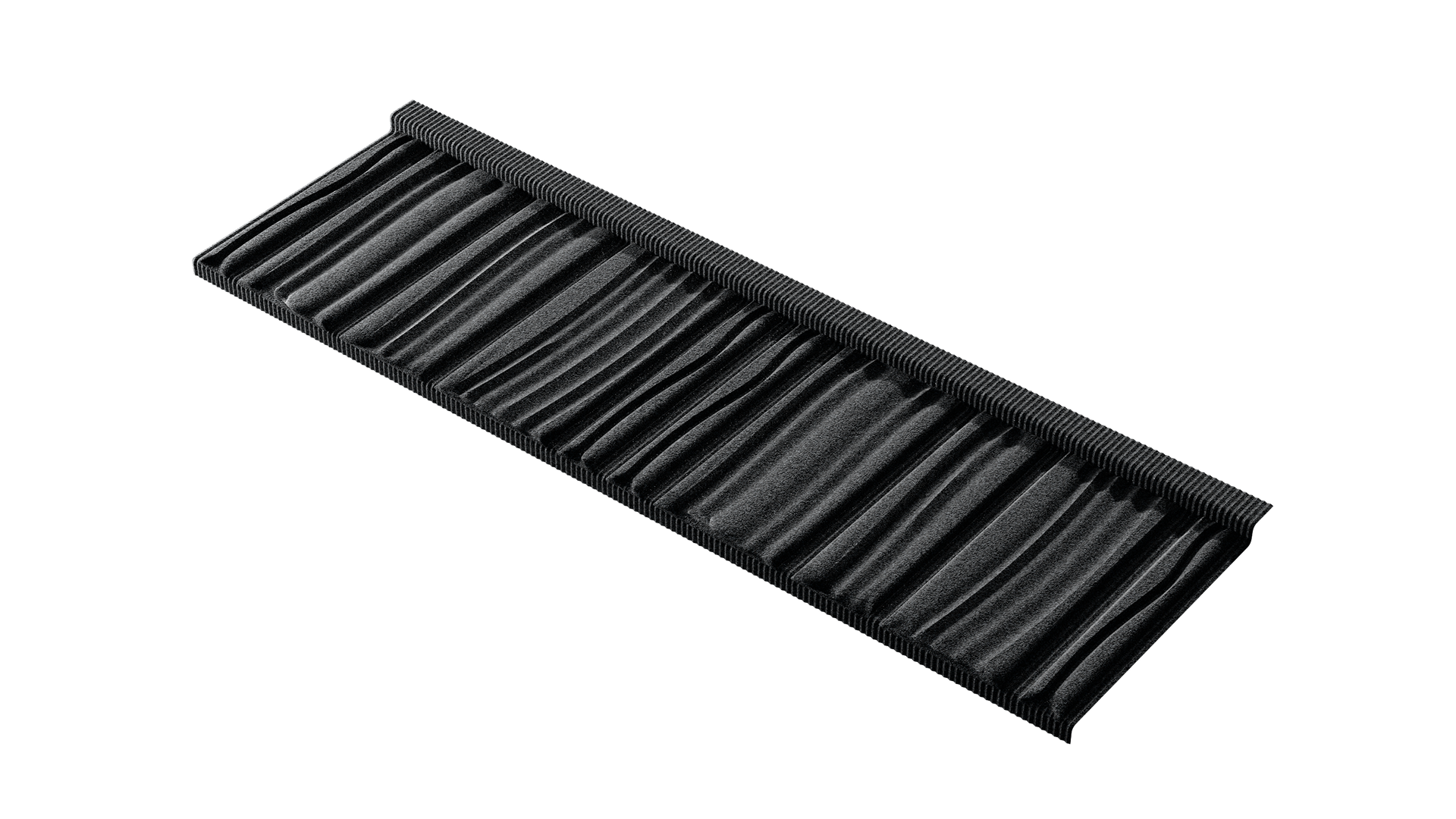

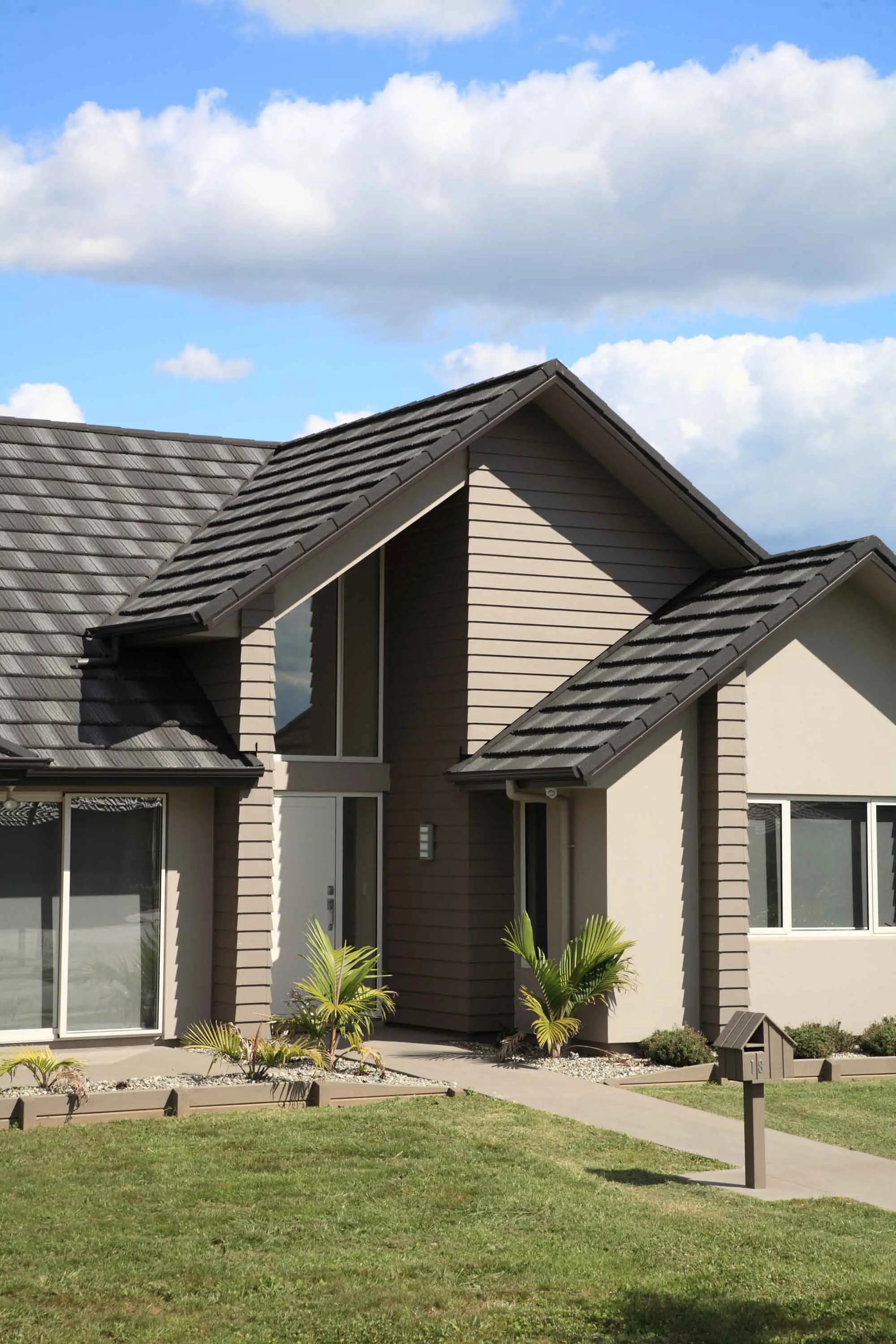

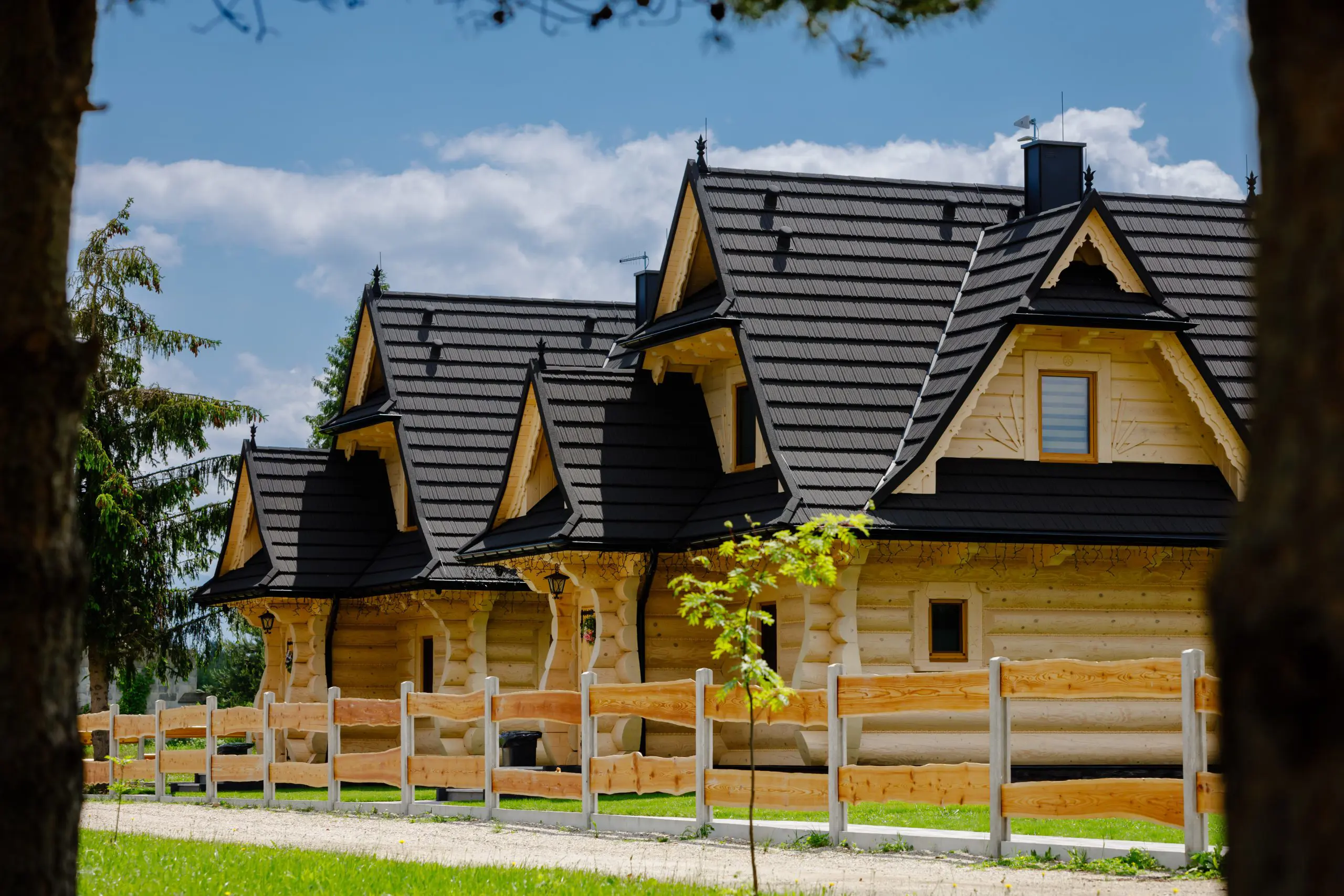

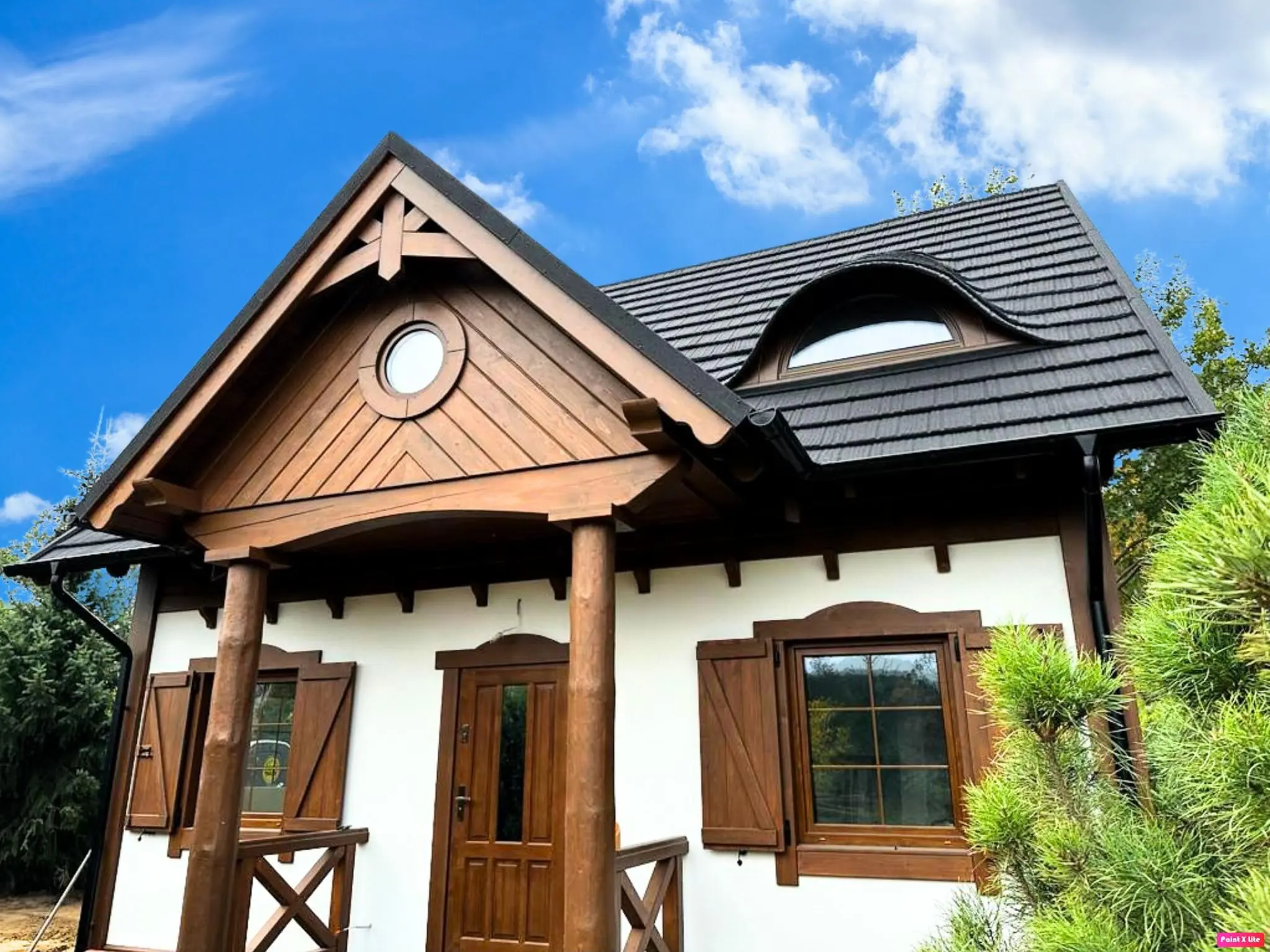

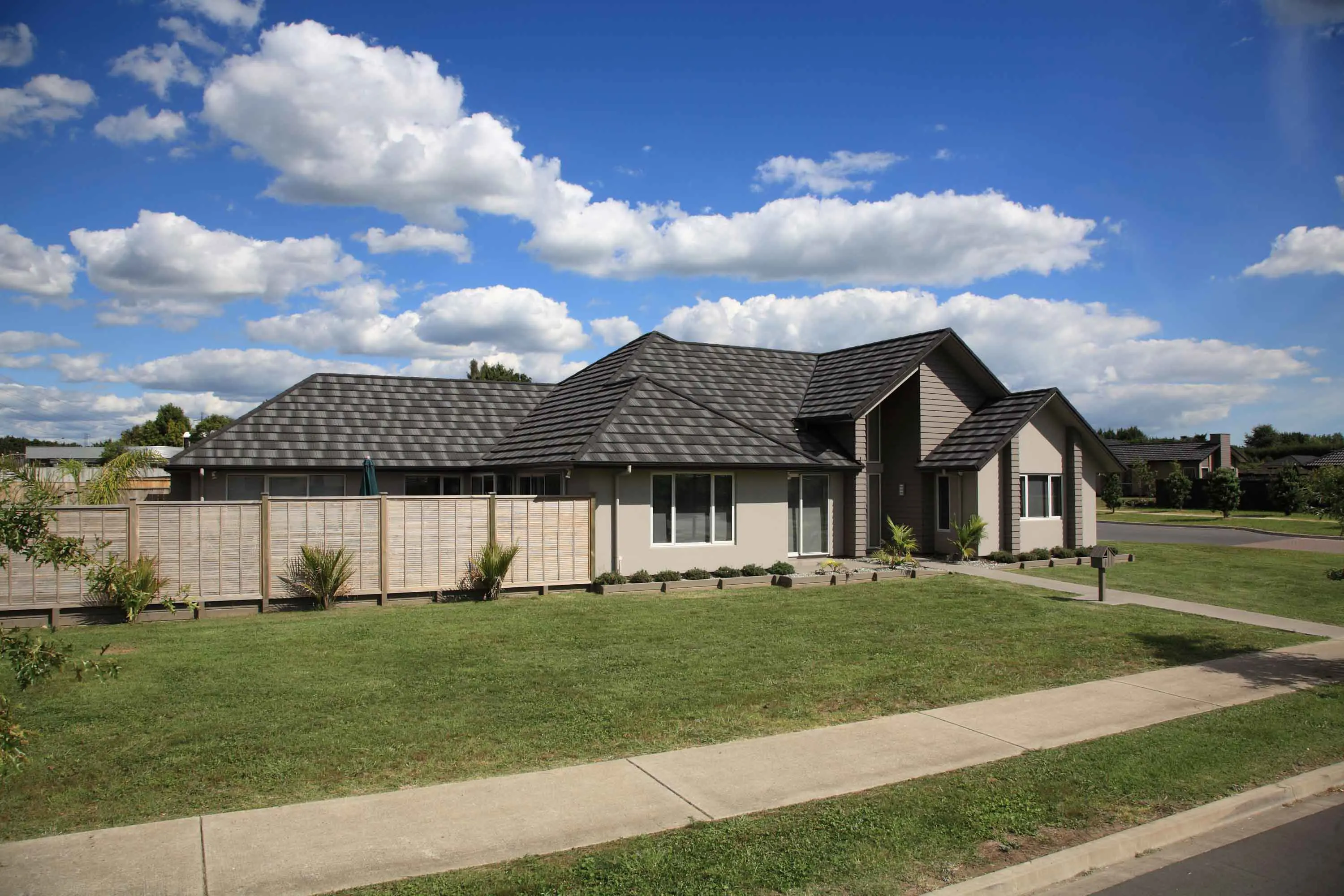

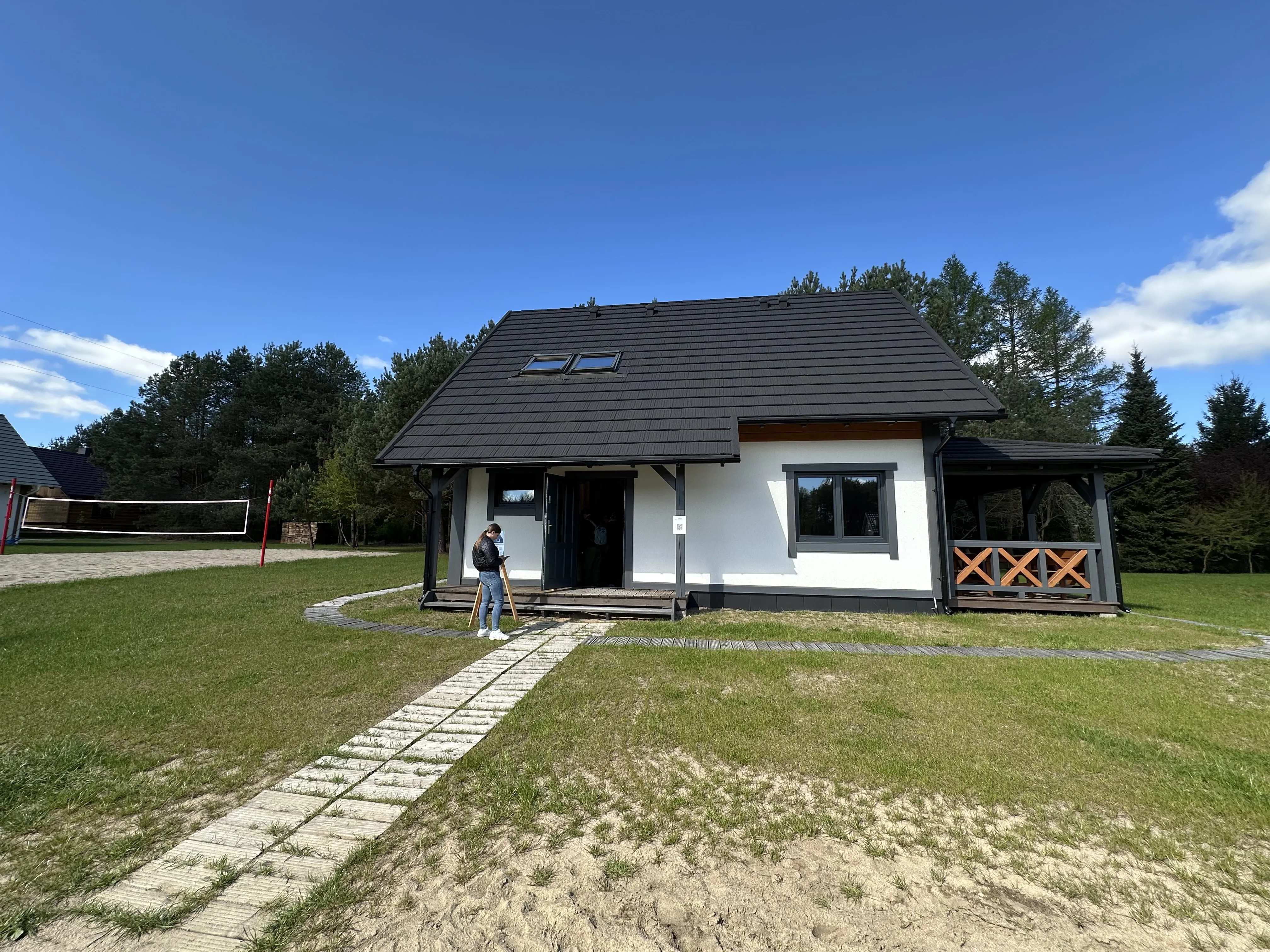

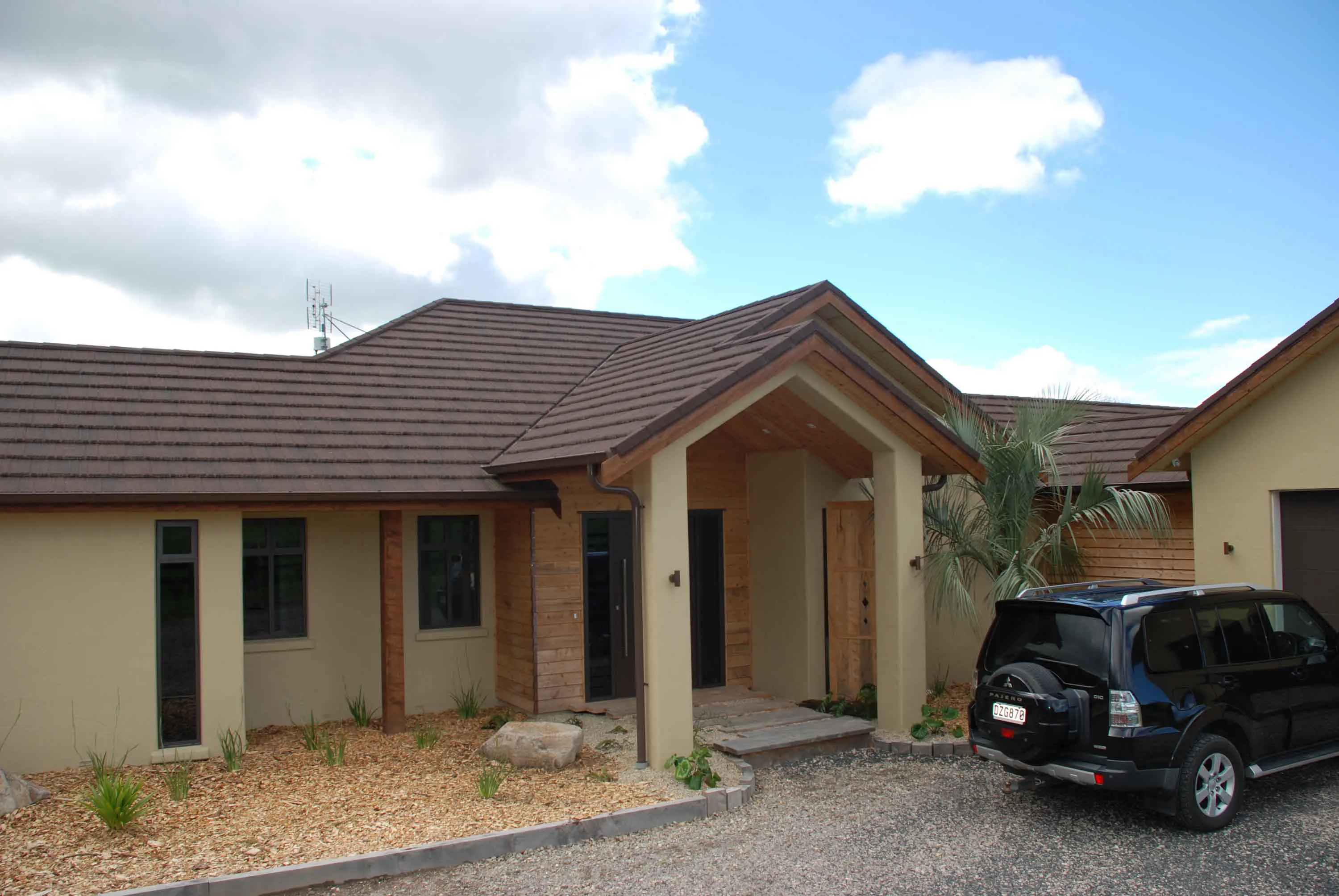

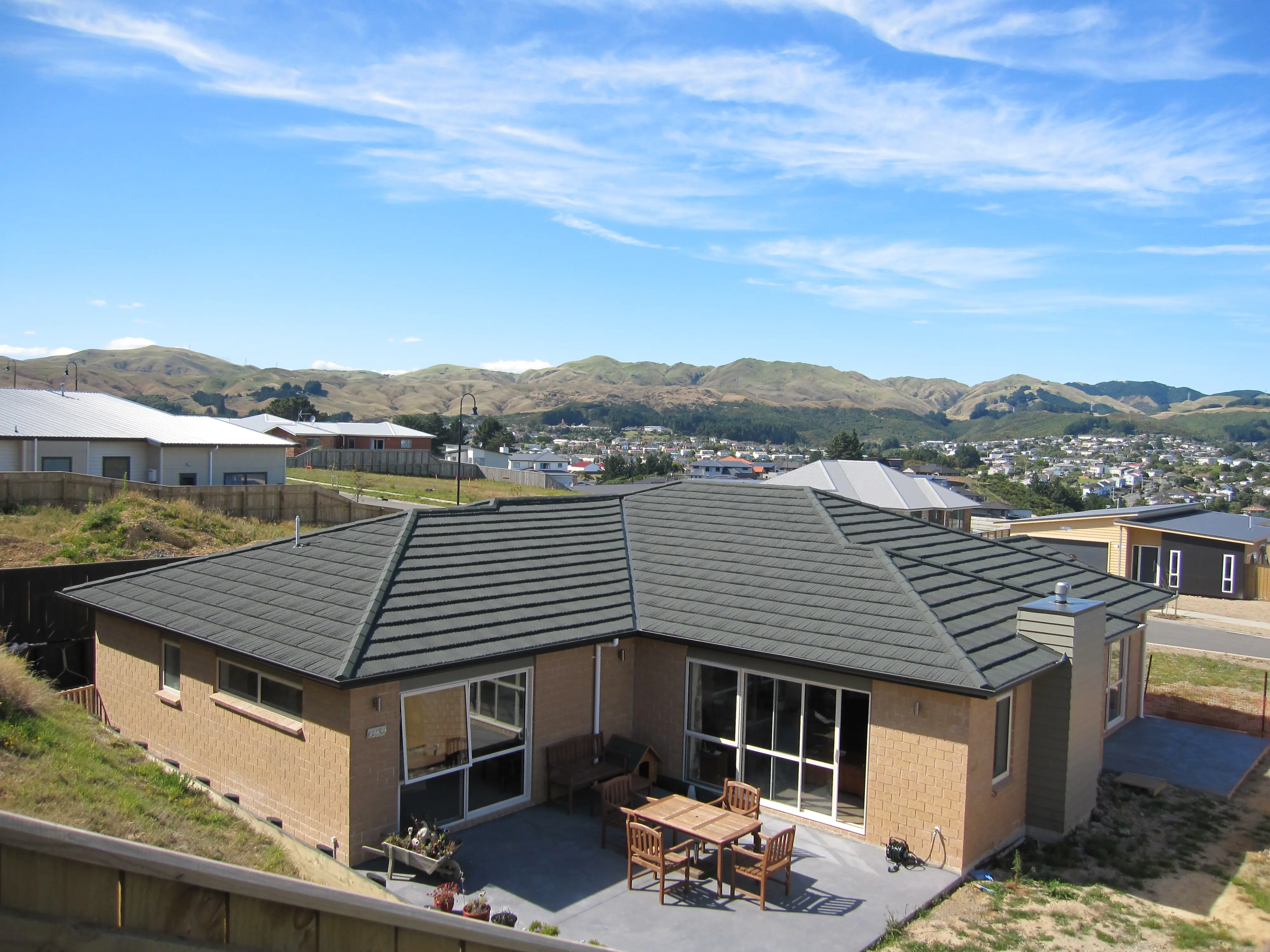

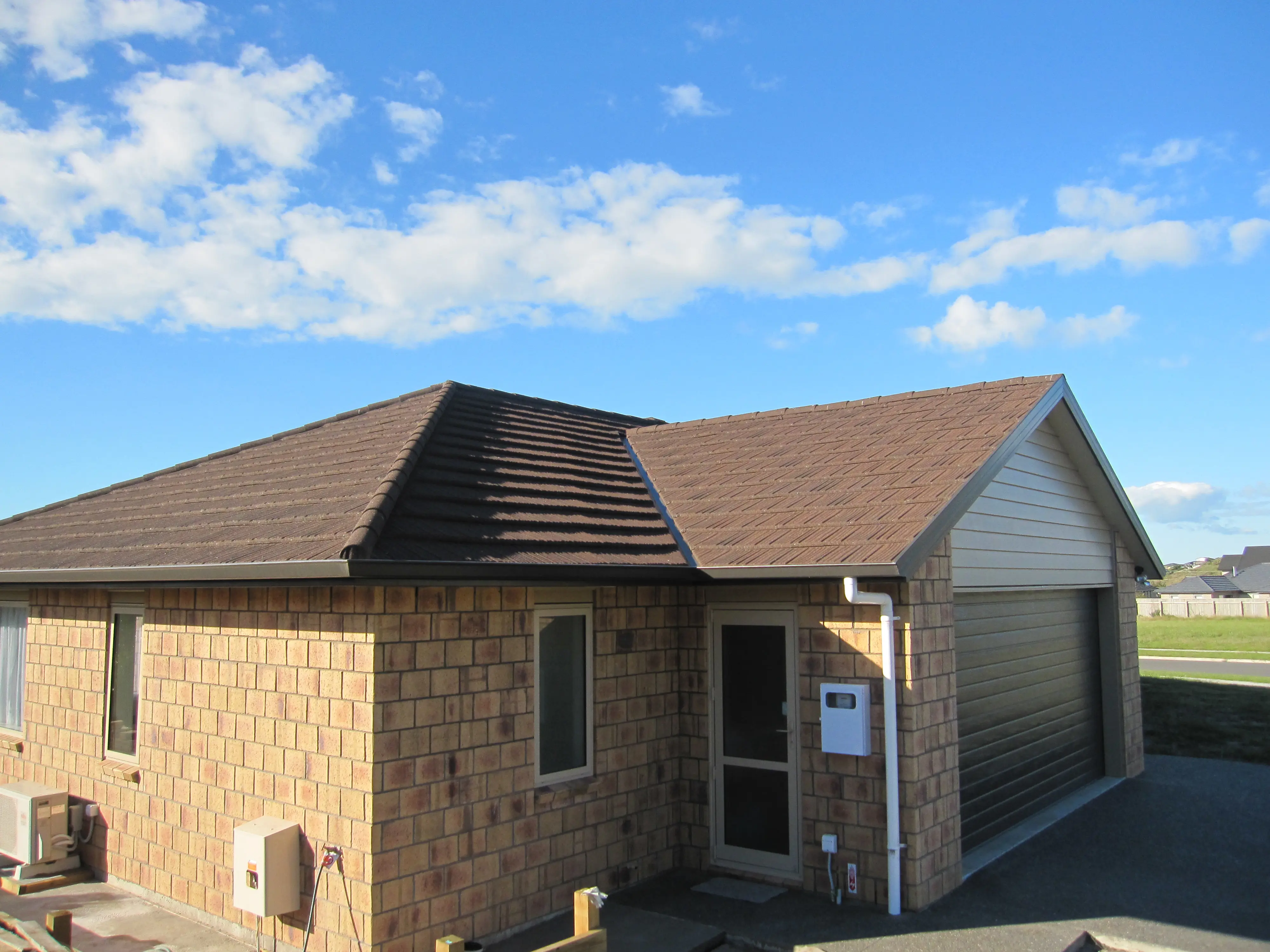

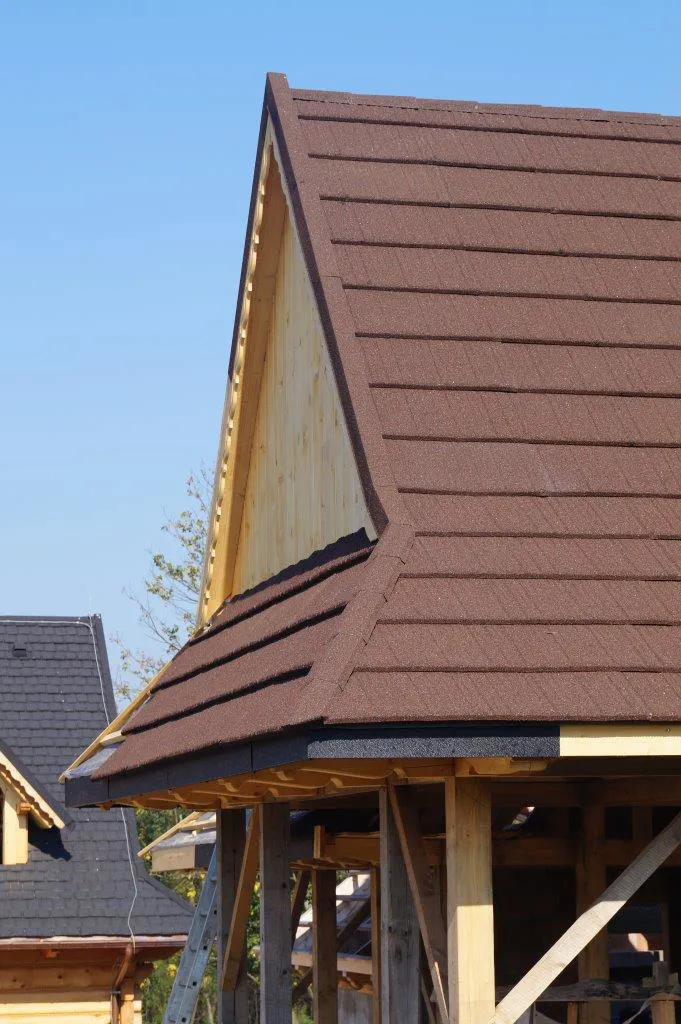

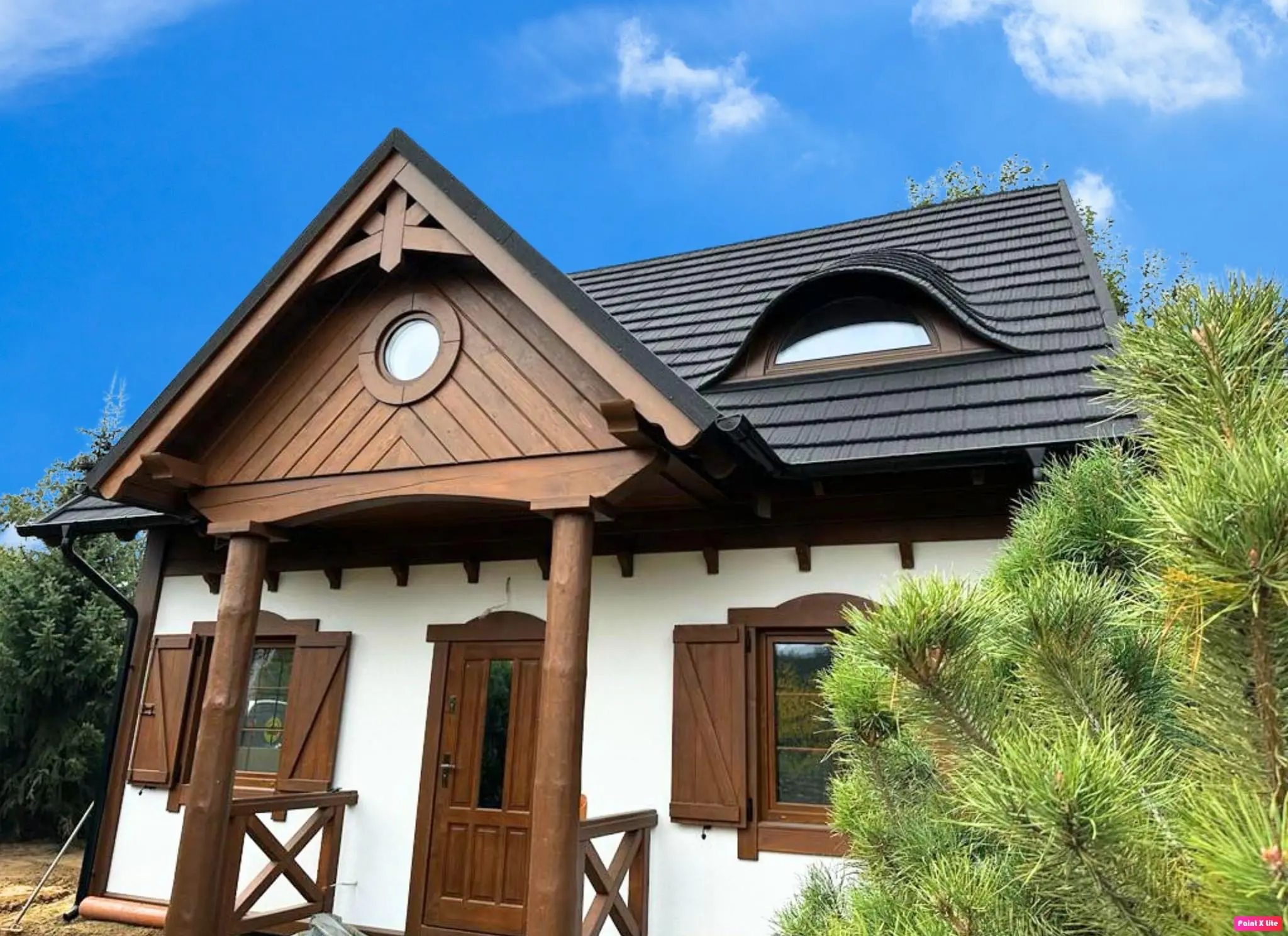

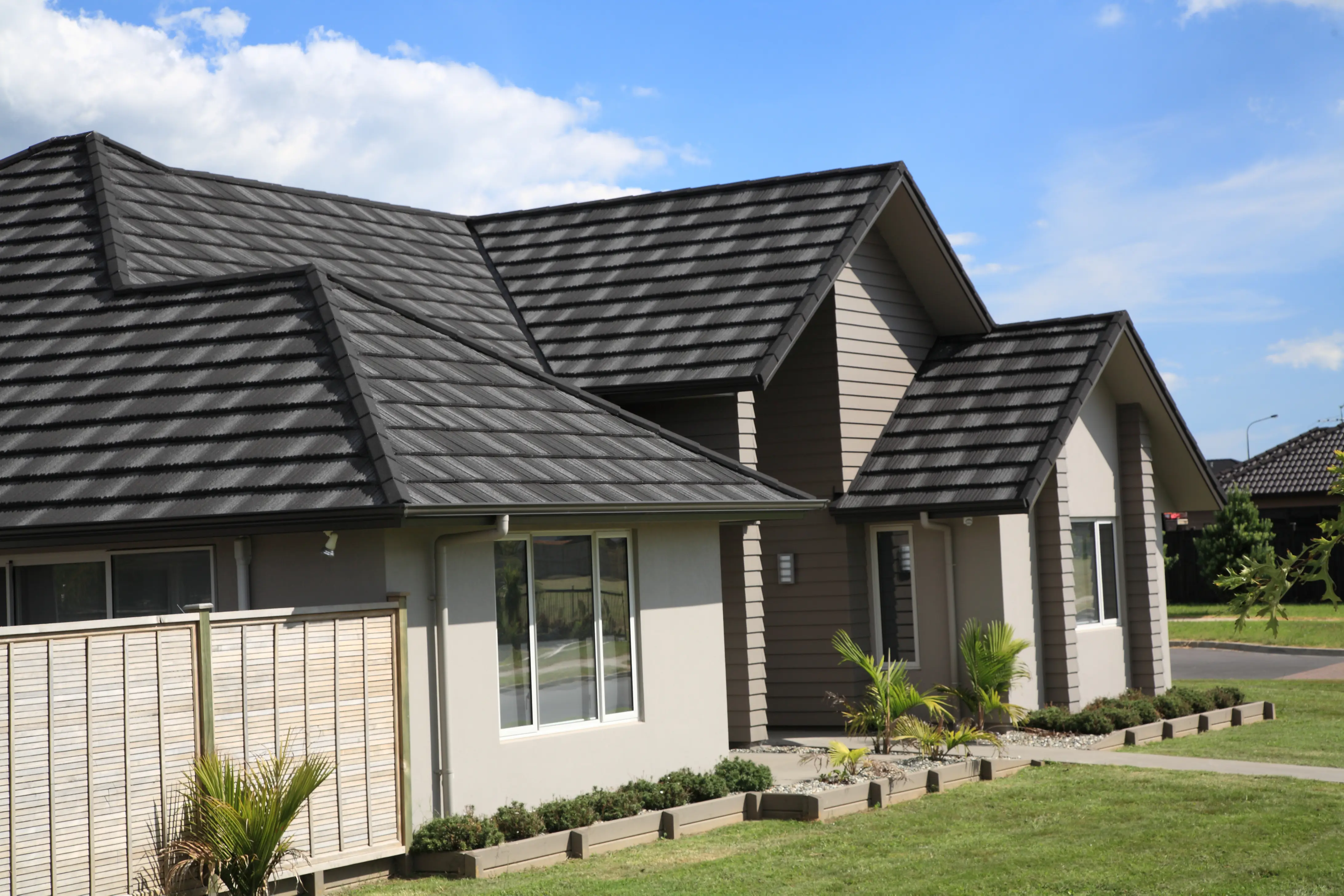

The Tilcor Shake features the wood-grain appearance of traditional shake. Its deep-ribbed profile is designed to enhance the shadow lines and create visual contrast. With Tilcor Shake you can enjoy this look combined with all the benefits of stone-coated steel: exceptional weather and fire resistance,energy efficiency and long life. Tilcor Shake textured-finish tiles are available in a choice of colors from deep charcoals to earthy browns and greens, and the blended tones of weathered shakes.

Get a quote Technical documents

Textured

Charcoal
Brown Bark
Cedar
Autumn
Green

Product specifications

Overall Length: 1340 mm
Length of cover: 1262 mm
Width of cover: 369 mm
Roof cover /Tile: 0.47 m2
Tiles /m2: 2.15
Weight /Tile: 3.10 kg
Weight /m2: 6.66 kg
Minimum roof pitch: 15 degrees

Technical documents

Shake Brochure
- pdf
Download
Shake Technical Data Sheet
- pdf
Download
Tilcor Shake - Eave Apron
- DWG
- PDF
Tilcor Shake - Box Barge Cover
- DWG
- PDF
Tilcor Shake - Basic Principle L
- DWG
- PDF
View all CAD Drawings View all documents

Tilcor performance guarantees

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
