Classic

Make a statement with strong, bold lines

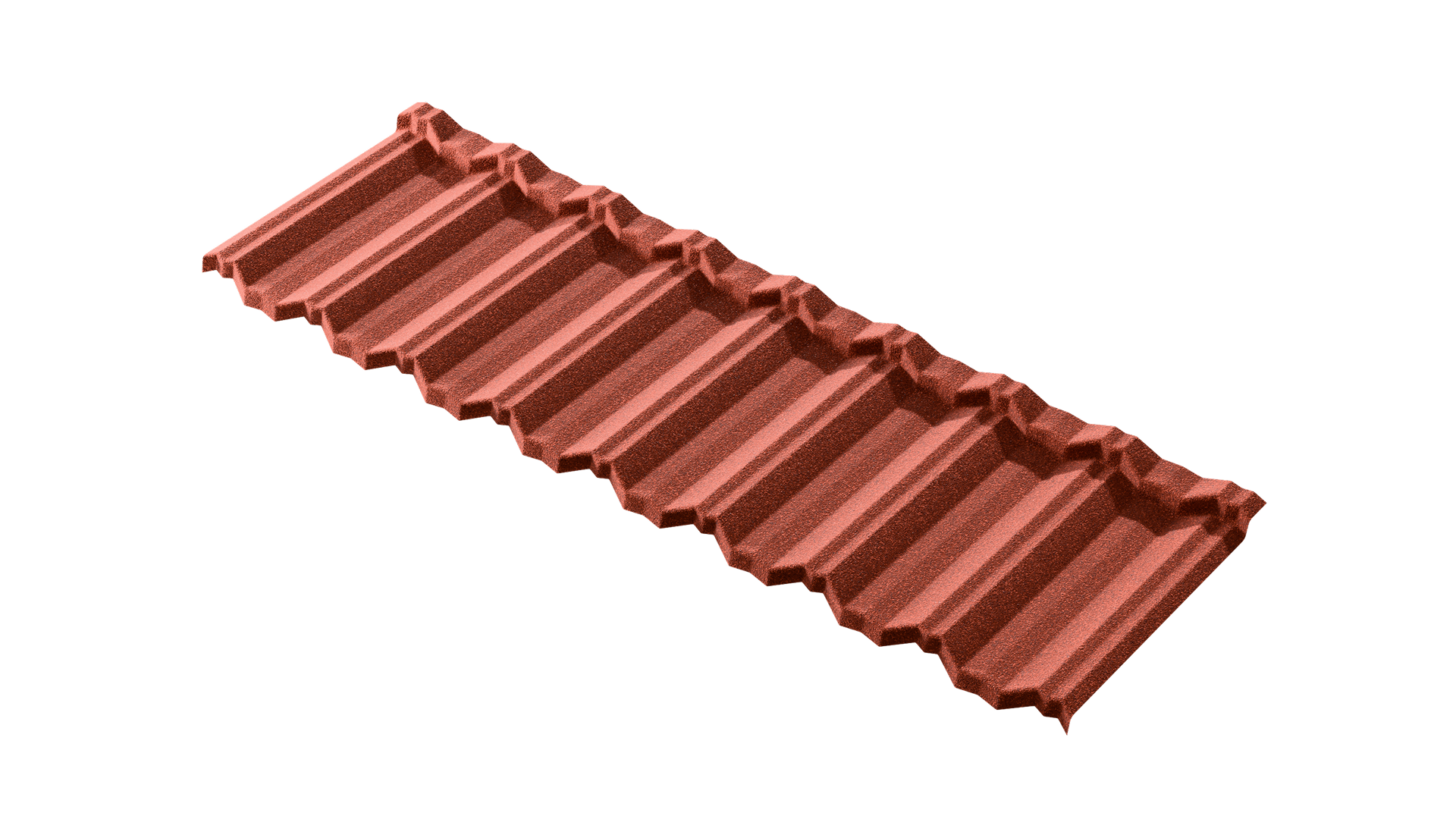

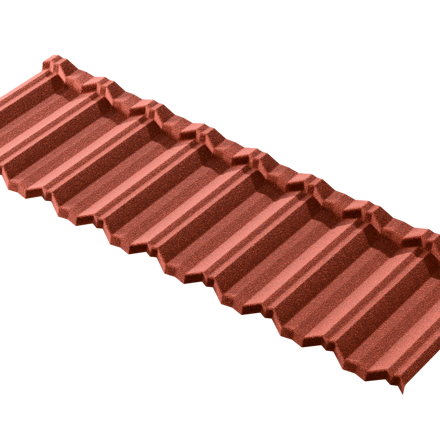

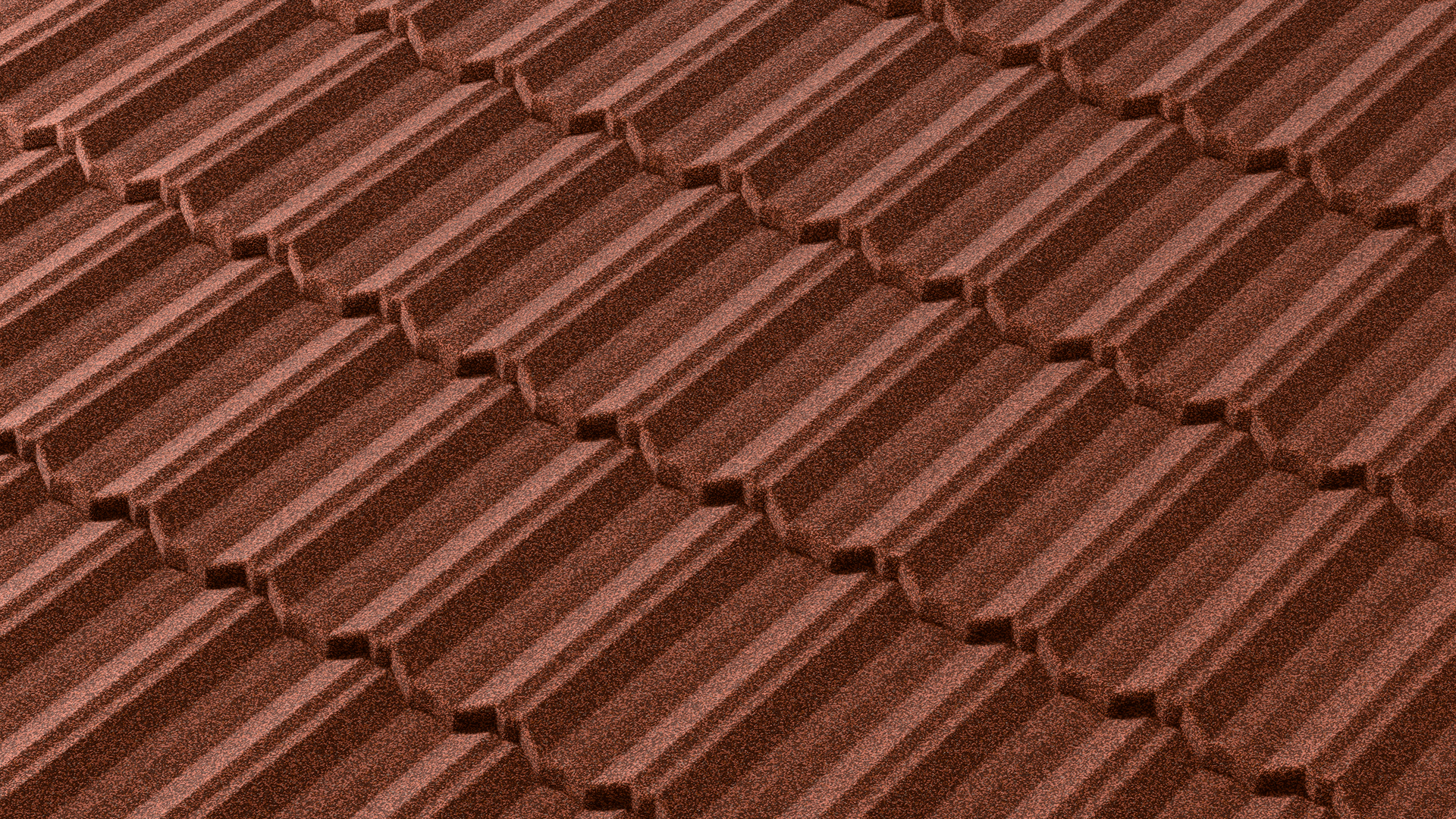

The Tilcor Classic tile features a defined angular profile that makes it one of the most popular products in the Tilcor range. Its sharp, clean lines and sloping edges create added depth and enhance the dimensions of your roofline. The Tilcor Classic is available in a wide selection of colours to suit any design and taste.

Get a quote Technical documents

Textured

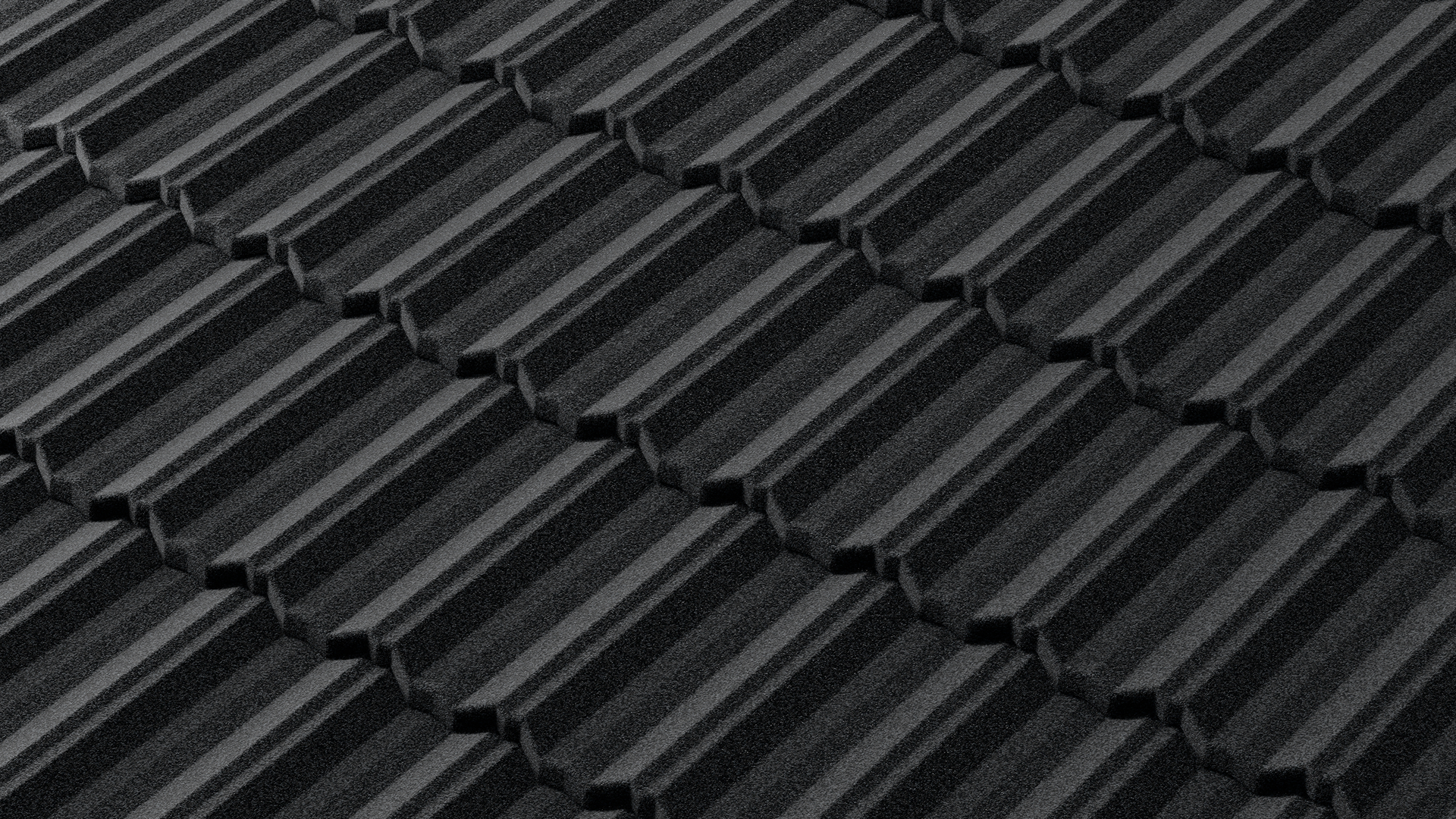

Charcoal

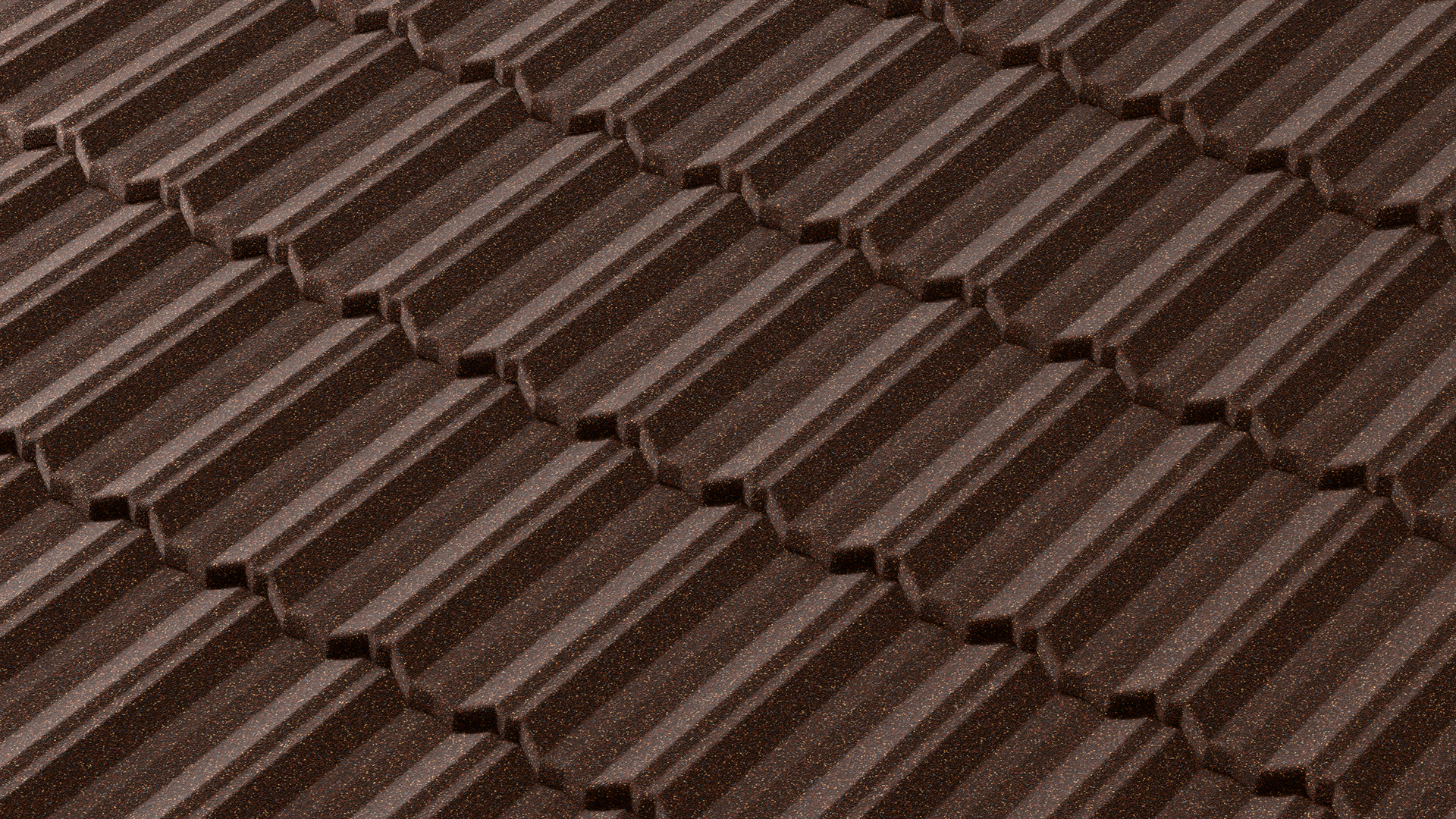

Brown Bark

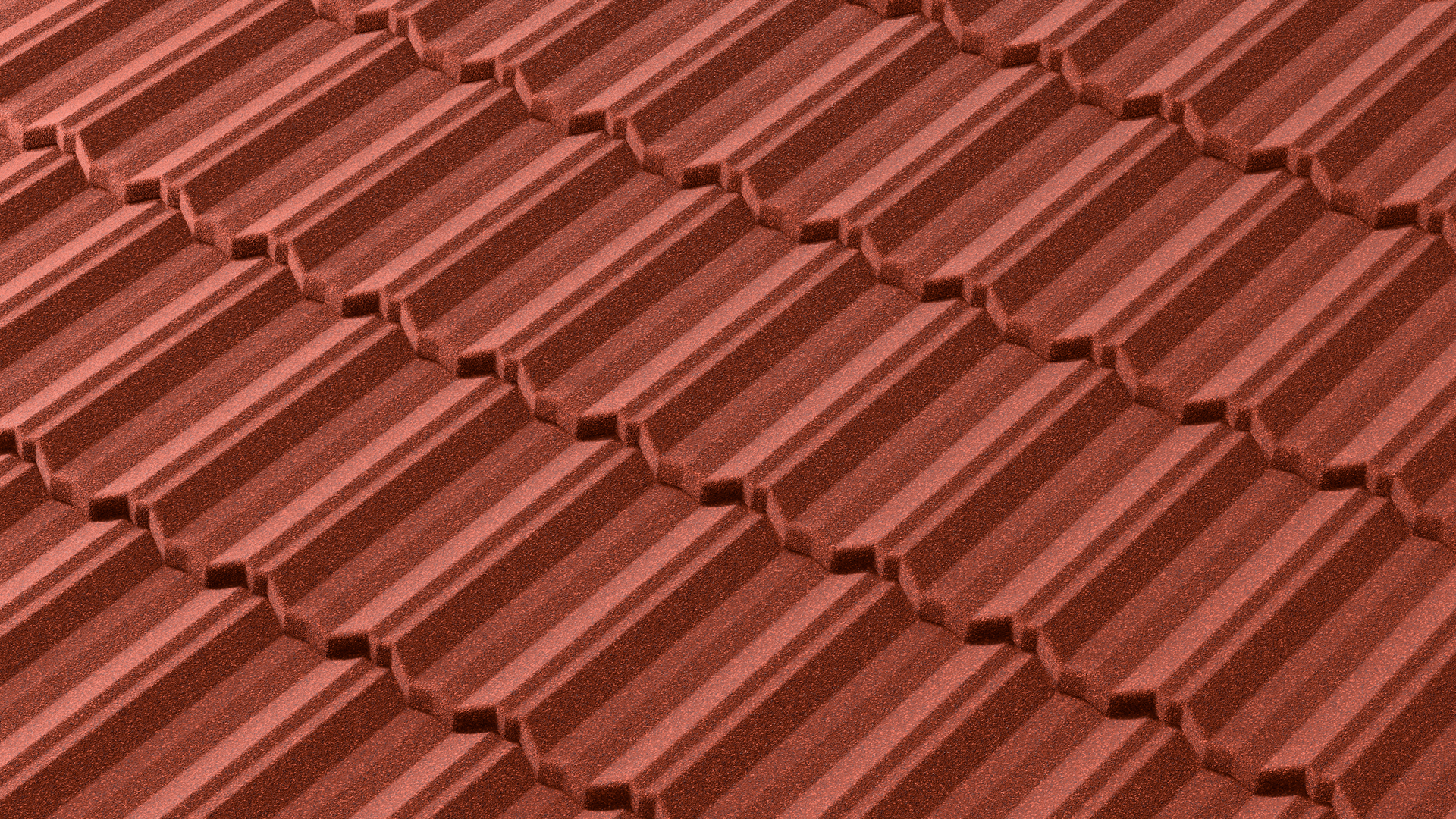

Terracotta
Autumn
Green

Product specifications

Overall Length: 1320 mm
Length of cover: 1265 mm
Width of cover: 369 mm
Roof cover /Tile: 0.467 m2
Tiles /m2: 2.14
Weight /Tile: 2.90 kg
Weight /m2: 6.56 kg
Minimum roof pitch: 12 degrees

Technical documents

Classic Brochure
- pdf
Download
Classic Technical Data Sheet
- pdf
Download
Tilcor Classic - Eave Apron
- DWG
- PDF
Tilcor Classic - Box Barge Cover
- DWG
- PDF
Tilcor Classic - Basic Principle L
- DWG
- PDF
View all CAD Drawings View all documents

Tilcor performance guarantees

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
