Skarpnes Bond

Smooth flowing curves for a timeless appeal

The Tilcor Bond tile captures the refined look of a traditional-style roofing tile while incorporating the lightweight advantages of steel. Its distinctive scalloped profile complements any architectural style. Tilcor Bond is available in a wide selection of colours to enhance any exterior colour scheme.

Free Quote Technical documents

Stocked Colours

Charcoal
Ashwood
Terracotta
Milano

Product Specifications

Overall Length: 1330 mm
Length of cover: 1260 mm
Width of cover: 368 mm
Roof cover /Tile: 0.46 m
Tiles /m2: 2.15
Weight /Tile: 3.0 kg
Weight /m2: 6.40 kg
Minimum roof pitch: 12.5 degrees

Technical documents

Bond Brochure
- pdf
Download
Bond Product Specifications
- pdf
Download
Bond Technical Data Sheet
- pdf
Download

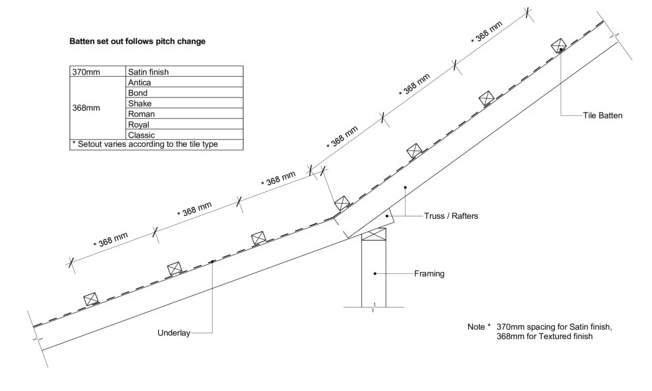

Bond - Change of Pitch Detail
- DWG
- DXF
- PDF

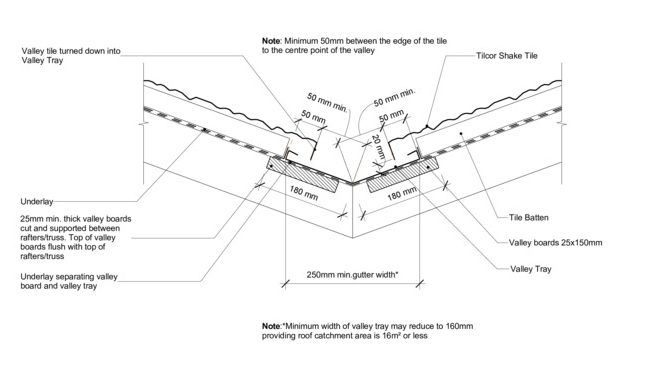

Bond - Valley Detail
- DWG
- DXF
- PDF
CAD Files Resource Centre

Tilcor performance guarantees

Tilcor's textured finish provides added protection by embedding stone granules in an acrylic base-coat. A final clear acrylic over-glaze is applied before being oven cured at 120° C. This extremely durable UV-resistant coating enables Tilcor roofing products to withstand the harshest environments around the world. Tilcor is ISO 9001 accredited and has international tests reports, appraisals and field results confirm our products are 100% waterproof, earthquake safe, fire resistant and able to withstand hurricane-force winds of up to 190kph. A Tilcor roof will not only safeguard your investment but will also give you complete peace of mind because it's backed by a Tilcor Warranty.
